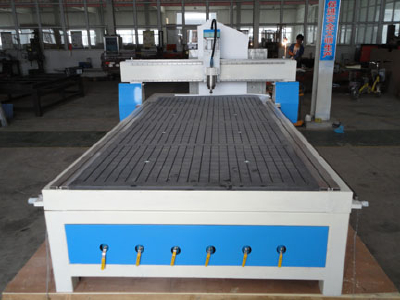

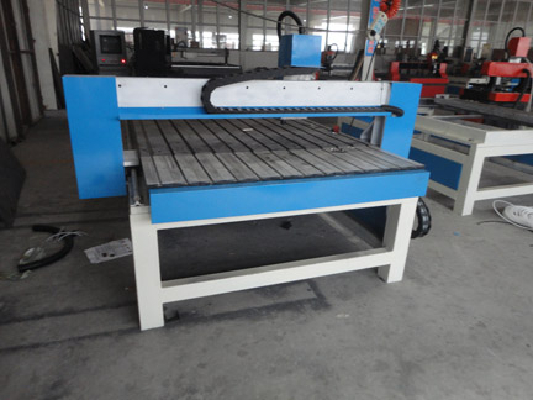

 Wood Router tool

Wood Router tool

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: lianyungang
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2009-06-04
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  jiangsu
  • Brand Name:  CHINA TENG FEI
  • Model Number:  FSDKJ1325-2

Features: Taiwan 4.5KW (air-cooled) power spindle, smooth operation, give full play to the advantages of the high-speed machine.
Bed part 150 * 250 * 6mm thick welded steel structure, strong vibration aging treatment
Not deformed.
Dual spindle design can automatically switch, adjustable biaxial spacing, while processing the same workpiece two or asynchronous processing tool change role play, suitable for processing a variety of flower-shaped sculpture.
         Taiwan imported silver 20mm square linear guide rail, double four ball slider, loading capacity, smooth running, fully guarantee the machining accuracy and wear resistance.
         Imported high precision ground ball screw, the knife precision. Use Shanghai Weihong control system, recognized relief software, especially for complex multi-flower-shaped carving knife, speed, three-dimensional sense.
         Professional design PVC table with 5.5KW vacuum pump can be firmly adsorbed workpiece or aluminum trapezoidal tank tops, so that the workpiece reinforcement convenience.
With imports of wire and cable, reciprocally 20 million times, imports widened towline ensure the shield will never be damaged.
The use of domestic high-torque motor drive and high subdivision driver system. This model configuration 110BYGH450B stepper motor, torque of 20 Nm.
Jie Mei Hong power drive 2M2280.
Performance parameters:
Dimensions: 2300 * 3300 * 1600mm
X, Y working stroke: 1300 * 2500
Z axis travel: 300mm
Platform size: 1350 * 2500mm
Maximum speed: 35m / mm
Maximum engraving speed: 20m / mm
Feeding height: 150mm
Design accuracy: 0.025mm
Engraving instruction: G Code UOOMMG.PIT
Total power: 5.5kw
Operating voltage: 380V / 50HZ
Spindle power: 4.5kw
Spindle speed: 6000-18000rpm / mim
Work: Step

  • Place of Origin:  jiangsu
  • Brand Name:  CHINA TENG FEI
  • Model Number:  FSDKJ1325-2
